CrazyDrill Hexalobe Flat
Diameter range
T4 - T30 / 0.9 mm (.035") - 3.80 mm (.150")
Tip Angle
180°
Coating
Coated
Cooling
External Cooling

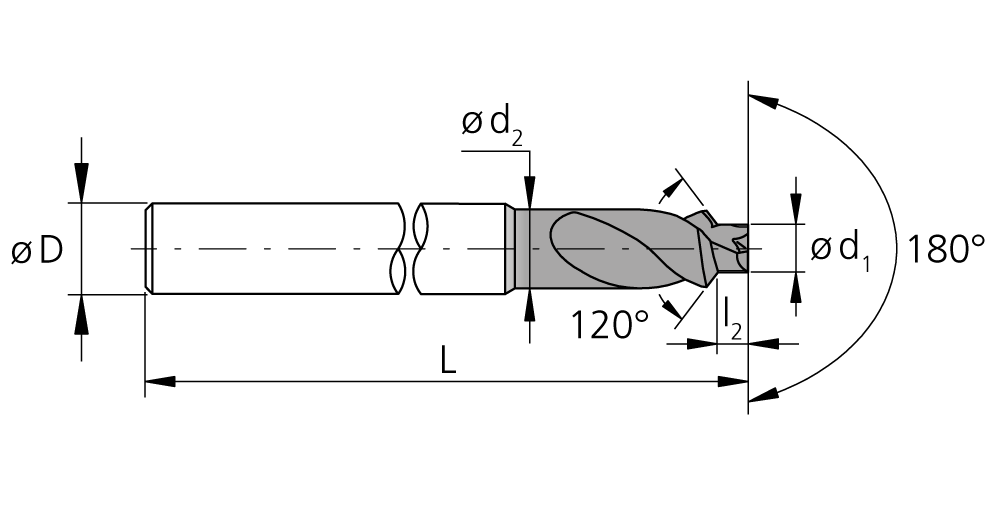

CrazyDrill Hexalobe Flat - the new flat drill for „TORX®“ shapes (hex lobular socket) with one cutting geometry for Titanium, Stainless Steel and Cobalt Chrome, available for profiles in the range from T4 - T30 (drill diameter from 0.90 to 3.80 mm, [.035“ - .150“]).
Solid Carbide
Pre-hole drilling with chamfer 120°
Tip angle 180
Teeth number
External Cooling
Coating eXedur SNP
P: Unalloyed and alloyed Steel; M: Stainless Steel; K: Cast iron; N: Non-ferrous metals; S1: Super alloys; S2: Titanium and Titanium alloys; S3: Cr-Co Alloys; H1: Hardened steel <55 HRC; H2: Hardened steel ≥55 HRC;
