Bone Screws
Precision Cutting Tools for Surgical Screw Machining
Medical Screw Machining: Hexalobe & Micro-Drilling Tools
Surgical screws represent a critical infrastructure of modern orthopaedic and spinal interventions. Because these implants are miniaturized and fabricated from high-strength biocompatible alloys, their manufacture requires extreme geometric precision and absolute process stability.
Mikron Tool provides specialized engineering for the most complex aspects of orthopaedic implant fabrication. We focus on optimizing the hexalobe socket machining process, traditionally a challenge in medical manufacturing.
Overcoming Metallurgical Obstacles in Medical Manufacturing
Fabricating high-tier medical hardware involves navigating the volatile properties of Grade 5 Titanium, 316L Stainless Steel, and Cobalt-Chrome (CoCr). These materials are notorious for high thermal generation and rapid work-hardening, which can compromise standard cutting tools.
Key production challenges include:

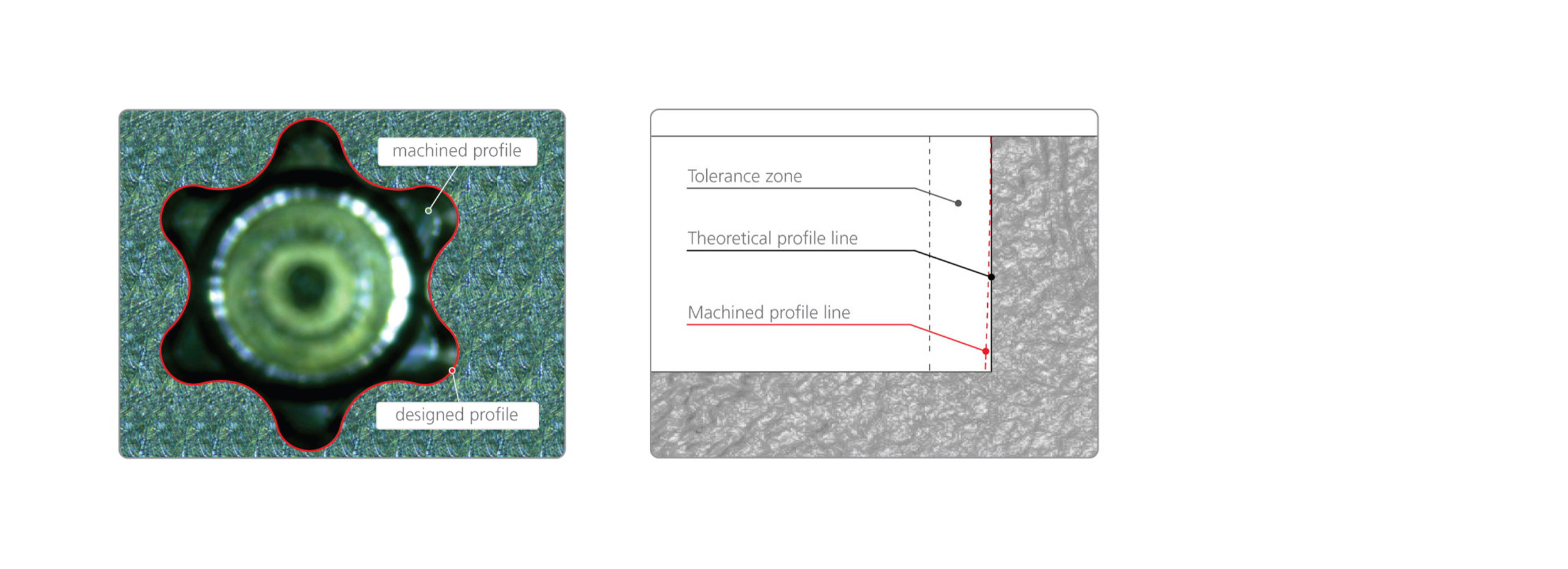

- Profile Fidelity: Maintaining microscopic tolerances during TORX® recess milling.
- Edge Integrity: Reducing burr formation to limit secondary manual finishing.
- Throughput Velocity: Minimizing "seconds-per-component" on high-speed Swiss-type lathes.
- Chip Evacuation Efficiency: Managing chip flow within micro-cavities to prevent sudden tool failure.
The Strategy for Internal Hexalobe Optimization

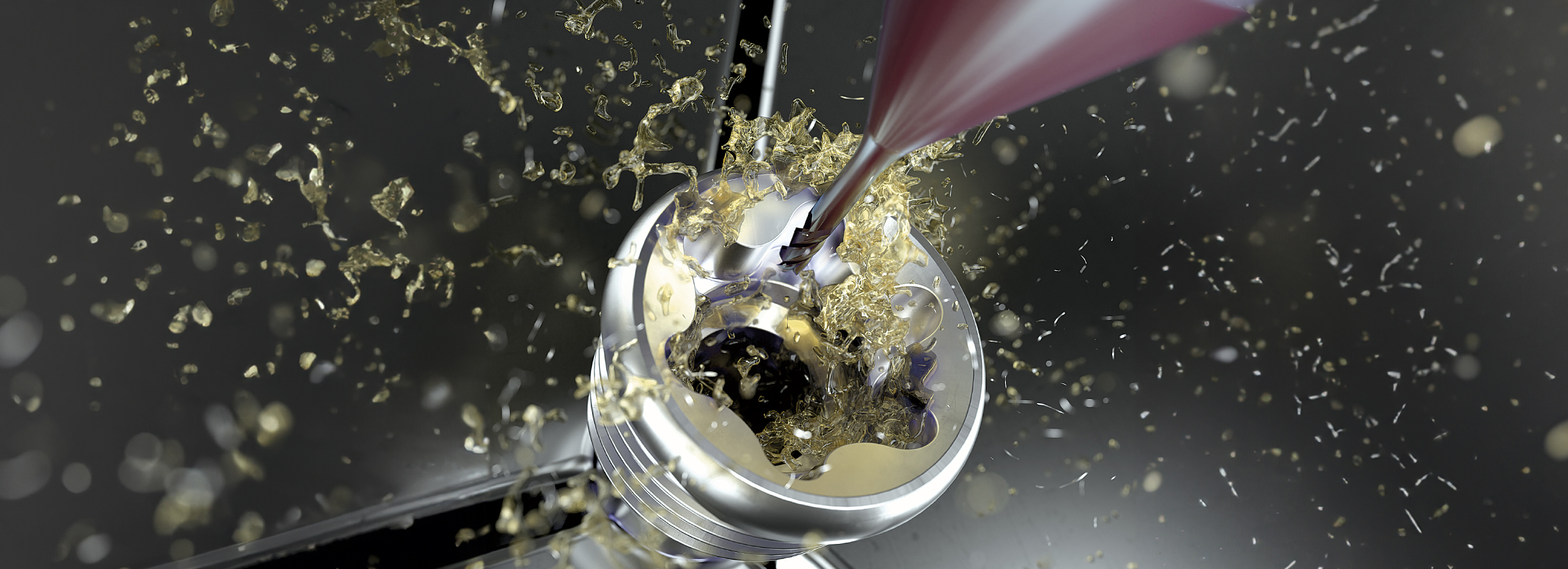

The internal drive remains a common bottleneck in the production of a bone and pedicle screw. Mikron Tool has refined a dedicated machining sequence that transforms this challenge into a streamlined, high-efficiency operation. For materials like TiAl6V4 ELI, CoCr alloys, and 316L Stainless Steel, we utilize a tiered approach:
High-Stability Drilling
The accuracy of the drive highly depends on the quality of the pilot hole. Our specialized micro-drills offer:
- Precision Alignment: Drills with steps and chamfers ensure that the subsequent endmills stay perfectly concentric.
- Substrate Preparation: Defined stock removal allows mills to perform optimally.
High-Interpolation TORX® Milling
Our dedicated micro-end mills are engineered specifically for high-speed interpolation within the socket.
- Rigid Architecture: Optimized carbide substrates and endmill design eliminate deflection, ensuring the "lobes" of the drive are dimensionally exact.
- Thermal Management: Specialized coatings and internal cooling technology provide a heat shield when milling tough medical alloys.
- Enhanced Feed Rates: Optimized flute geometries allow for aggressive material removal while maintaining tool longevity.
High-Stability Cannulated Screw Drilling
- Deep-Hole Excellence: Our technology facilitates efficient cannulated screw drilling, ensuring straightness even at high aspect ratios.
Engineering for Biocompatible Quality
To ensure long-term implant success and tool endurance, our solutions incorporate:
- Optimized Carbide: Provides the fracture toughness required for micro-scale engagement.
- Chrome-Free Surface Treatments: Vital for preventing cross-contamination of metallic implants.
- Custom Geometries: Specifically designed to mitigate "built-up edge" (BUE) when processing ductile Stainless Steels.
Performance Comparison: Micro-Machining Efficiency
| Feature | Benefit |
|---|---|
| Consolidated Cycles | Reduced tool offsets & accelerated part completion |
| Optimized Profiles | Precision hexalobe socket machining with zero burr |
| Advanced Thin-Film Coatings | Maximum tool life in Titanium & Cobalt-Chrome and Stainless Steel |
| Predictable Tool Wear | Stable, lights-out production for high-volume batches |
| Cannulated Drilling | High-precision coaxiality to guarantee functional alignment |
Refine Your Surgical Implant Production
Whether you are developing a new bone and pedicle screw prototype or optimizing a high-volume line of trauma hardware, Mikron Tool delivers the technical edge required for success.
